General
- Power Supply: DC 12V
- Max Working Current: 10 A
- Installation type: 1-DIN in dash installation
- Control Panel Night Illumination Function
- Drop Down Detachable Front Panel
- Install Size: 180(L) mm ×168(W) mm×50(H) mm
- Package Size:340(L) mm×290(W) mm×120(H)mm
- Gross Weight: 3.5 KG
- Net Weight: 2.6 KG
- Remote Control Function
- Built-In Cooling Fan
DVD
- Compatible Format: DIVX5.0/ AVI/ DVD/ VCD/ MP3/ CD/ CD-RW/ JPEG
- DVD OSD Language: English/ German/ Spanish/ French/ Portuguese/ Latin/ Korean/ Italian
- Audio/ Subtitle Language: English/ German/ Spanish/ French/ Portuguese / Latin/ Korean/ Italian
Screen

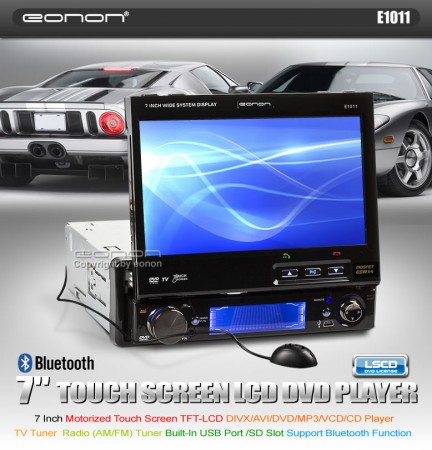

- Screen type : 7 inch touch screen
- Fully Motorized Viewing Angle Adjustment (with Motorized panel)
- Resolution: 480 * RGB * 234
- Image Brightness / Contrast/ Color / Saturation adjustable
- Built-In LCD Clock Display and Adjustable Function
Bluetooth
- Can make and receive calls hands-freely
- Support Bluetooth MP3 Player Function (Attention: This function is limited in using with the mobile phone which supports the Bluetooth Audio Output)
TV
- TV tuner type: Analog TV tuner (Analog TV is transmitted in a manner similar to radio. If you want Digital TV which sends and receives of great moving images and sound, you can add our E770 DVBT. More information about Analog and Digital TV, .)
- 1×TV Antenna
- TV System：NTSC/PAL
(NTSC is a video signal standard used by the color television industry in the United States and Japan. PAL is a video standard used by the color television industry and is the common standard used in Europe. Want to know what fit system applied in your country? .)
Radio
- Stations: 30 Preset stations
- FM(3*6)87.5-108MHz(Europe) Increment 0.05MHz
- AM(2*6)522-1620KHz Increment 9KHz
- Under Radio mode, can select Europe/ USA radio frequency
- Built-In RDS Radio Receiver Function (Your radio can display rich data such as the name of the station or the track name, for FM radio signals)
Audio & Video
- Max power: Loud 4×65W (The stereo sound quality when turn to the loudest volume)
- EQ (Effect Compensation): POP, ROCK, CLASS
- Auto-memory Function: help you return to the last time the music or video stopped.
- Video System: Auto/PAL/NTSC
Input & Output
RCA Audio:
- FR/FL/RR/RL /Sub-woofer output (Front Right/ Front Left/ Rear Right/ Rear left. Used for connect audio media, red and white wires for audio connectors)
- 1 x AUX Audio R/L input
RCA Video:
- 2 x video output
- 1 x Back Sight input（CCD Video Input）
-1 x AUX video input (Used for connect video media, yellow wires for video connectors.)
Others:
- 1 x TV Antenna Input
- 1 x Radio Antenna Input
- 1 x Bluetooth Microphone Input
- Built in amplifier FR/FL/RR/RL 4-Channel Audio Output
- USB Port (It is a great way to hook up your portable media player with your car entertainment center)：Can support soft drive such as USB flash drive, or MP3 player with maximum 2G compatibility, can’t support portable hard drive.
- SD Card Port: Can support SD Card of maximum 2G compatibility
Accessories
- 1×User's Manual
- 1×Remote Controller (Battery inside)
- 1×Power Cable
- 1×Antenna
- 1×USB Cable
- 1×Operation pencil
- 1×Microphone
